Library South Wall Monitoring


The Library south wall is constructed of 2x6 wood studs with 3 layers of 2 inch expanded polystyrene by Western Insulfoam placed on the outside of the structural members. The layers of rigid insulation have a combined R-Value of 27. The wall cavity is filled with R-13 fiberglass batts by Johns Manville creating a total wall assembly R value of nearly 40.

South Wall Graphs

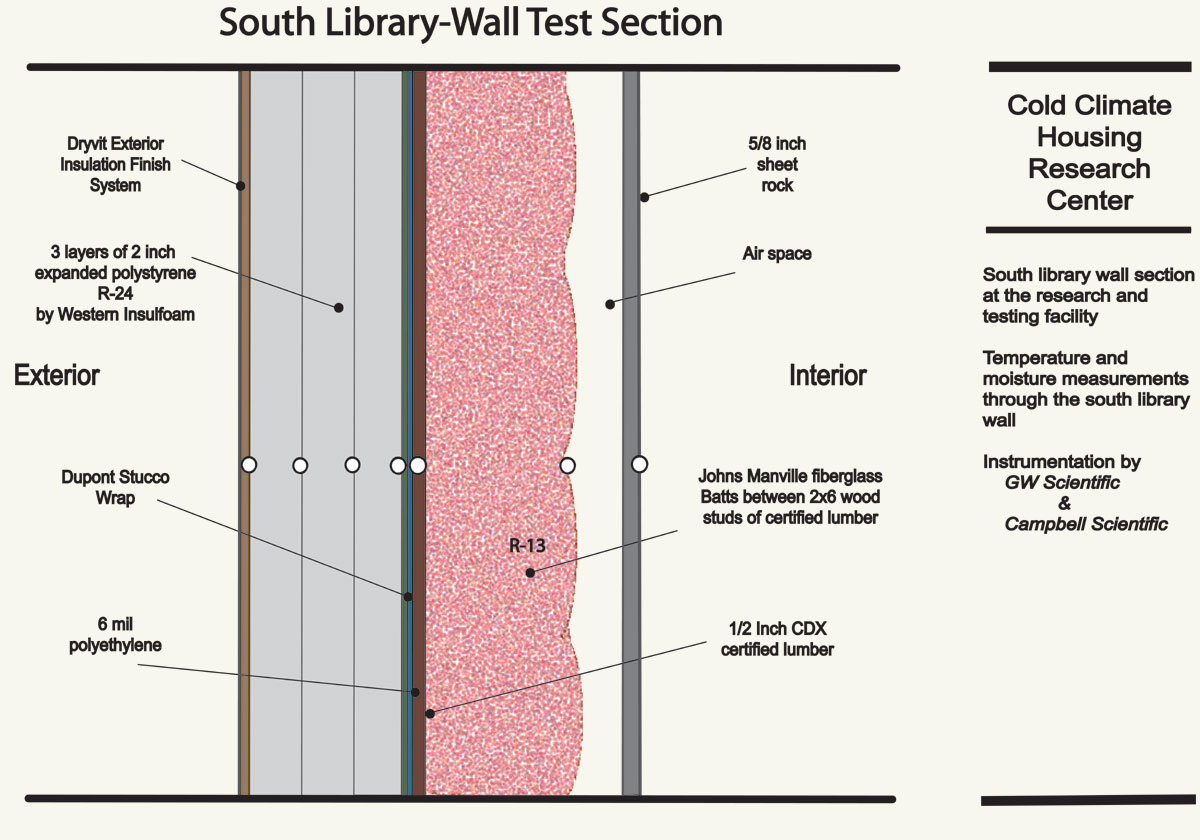

South Wall Section

Realtime Graph
Average Hourly Temperature South Wall
7-Day | 2-Month | 4-Month | 12-month


Photo Gallery : Library Wall Installation

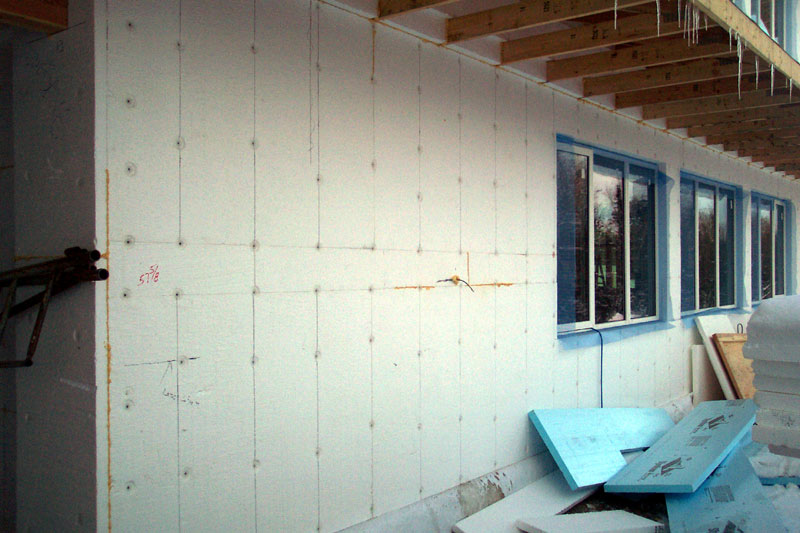

Outside view of Library south wall during construction.

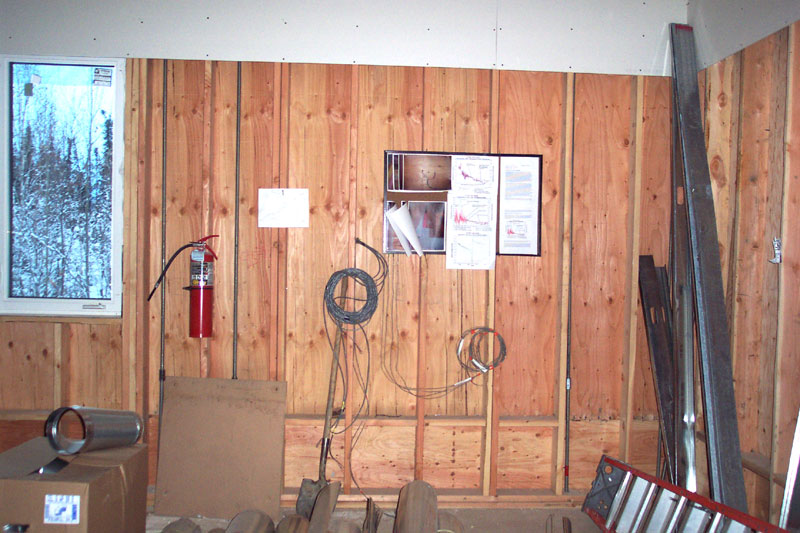

Inside view of Library south wall before installation of batt insulation.

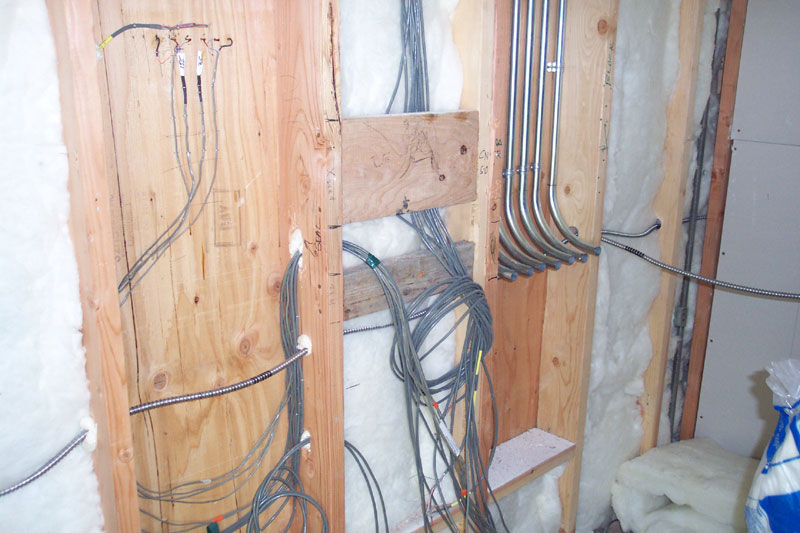

Inside view of sensors installed in Library south wall, with batt insulation pulled away.
